Stainless Steel Guide Rail PCB Reject Conveyor Adjustable Speed For SMT Production Line

Name: Stainless Steel Guide Rail PCB Reject Conveyor Adjustable Speed For SMT Production Line
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: HS-CVN350
Price: 85.00 USD
Availability: InStock

ブランド名:	HSTECH
モデル番号:	HS-CVN350
Moq:	1個
価格:	negotiable
支払条件:	T/T
供給能力:	100 PC/月

詳細情報

製品説明

詳細情報

起源の場所:

中国

証明:

CE,ISO

製品名:

PCBの棄却物のコンベヤー

PLC:

三菱

センサー:

病気

状態:

新しい

材料:

ステンレス鋼/アルミニウム構造

保証:

1年

パッケージの詳細:

木製

供給の能力:

100 PC/月

ハイライト:

stainless steel PCB reject conveyor

adjustable speed SMT conveyor

PCB handling equipment with warranty

製品説明

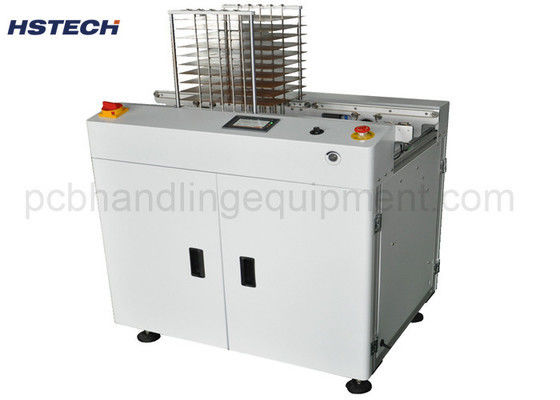

Stainless Steel Guide Rail PCB Reject Conveyor

Adjustable Speed For SMT Production Line

Product Overview

Our HS-CVN series PCB Reject Conveyor is a customized SMT inline separating conveyor integrated with Mitsubishi PLC control and Sick brand photoelectric sensor configuration. Rated at maximum 100VA power consumption, it is designed for automatic sorting of qualified (OK) and defective (NG) PCB boards on full SMT assembly production lines.

This inline reject conveyor is specially deployed right after PCB AOI inspection, SPI test or post-reflow visual checking station. It enables automatic shunting of faulty PCBs without halting the entire upstream and downstream SMT production workflow. While defective boards are diverted for rework or scrap, good PCBs continue uninterrupted transportation to follow-up processes like component assembling, bonding or final testing.

We provide two standard models: HS-CVN350 and HS-CVN460 to cover different PCB dimension requirements. Custom length and dimension modifications are available per customer's unique production demands.

Technical Specifications

Specification Item	HS-CVN350	HS-CVN460
Model No.	HS-CVN350	HS-CVN460
Effective PCB Dimension	50×50mm ~ 450×350mm	50×50mm ~ 550×460mm
Overall Machine Dimension	1000×690×930mm	1000×800×930mm
Net Weight	70KG	90KG
Transport Working Height	910±20mm	910±20mm
PCB Transport Direction	Left to Right / Right to Left	Left to Right / Right to Left
Adjustable Conveying Speed	0.5~20m/min	0.5~20m/min
Input Power Supply	AC100V~230V, Single Phase, 50/60Hz	AC100V~230V, Single Phase, 50/60Hz
Max Rated Power Consumption	100VA	100VA
Required Working Air Pressure	4~6 Bar	4~6 Bar
Max Air Consumption	10L/min	10L/min
Communication Interface	SMEMA	SMEMA

Core Features & Advantages

Three Working Modes: Reject Mode, Inspection Mode, and By-pass Mode for flexible production scheduling
Modular Integrated Structure: Simplifies installation, maintenance, and component replacement
High Stability Frame: Robust welded construction prevents shake and deflection during continuous operation

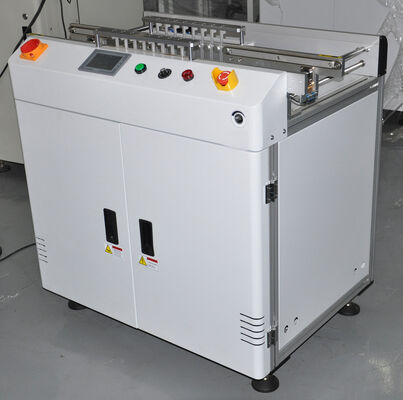

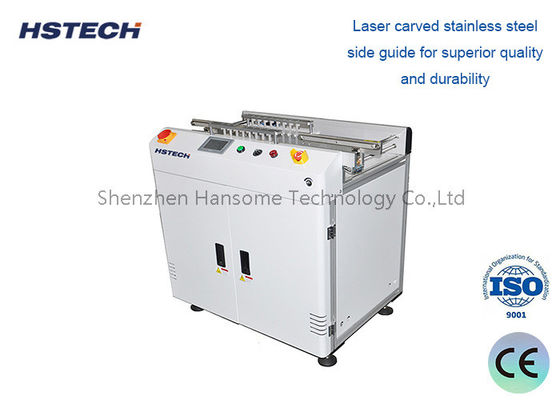

Laser-engraved Stainless Steel Guide Rail: Wear-resistant, anti-rust, and long service life
Ergonomic Arm Rest: Reduces operator fatigue during manual inspection
Precision Lead Screw Width Adjustment: Smooth synchronous guide rail adjustment for various PCB widths
Customizable Dimensions: Available in custom lengths and sizes to match production line layouts
Stepless Variable Speed Control: Continuously adjustable from 0.5 to 20m/min
Universal SMEMA Compatibility: Seamlessly integrates with all mainstream SMT equipment brands
Premium Electrical Components: Mitsubishi PLC and Sick sensors ensure accurate PCB detection and rejection

Working Principle

When upstream inspection equipment sends an NG defective signal via SMEMA communication, the built-in Sick sensor detects the PCB position. The Mitsubishi PLC processes the signal and activates the pneumatic rejection mechanism. Defective PCBs are automatically pushed to the reject storage area, while qualified PCBs continue uninterrupted to subsequent SMT processes.
