High-efficiency PC Intelligent Grounding Automatic Screw Fastening Equipment For Electronics Assembly

ブランド名:	HSTECH
モデル番号:	HS-SF300
Moq:	1個
価格:	negotiable
支払条件:	T/T
供給能力:	30 個/月

詳細情報

製品説明

詳細情報

起源の場所:

中国

証明:

CE,ISO

ドリブンメソッド:

サーボモーター

力:

1200W

コントロール:

タッチスクリーン

電源電圧:

AC220V

保証:

1年

パッケージの詳細:

木製

供給の能力:

30 個/月

ハイライト:

PC intelligent grounding screw fastening machine

automatic screw fastening equipment for electronics

high-efficiency screw fastening machine with warranty

製品説明

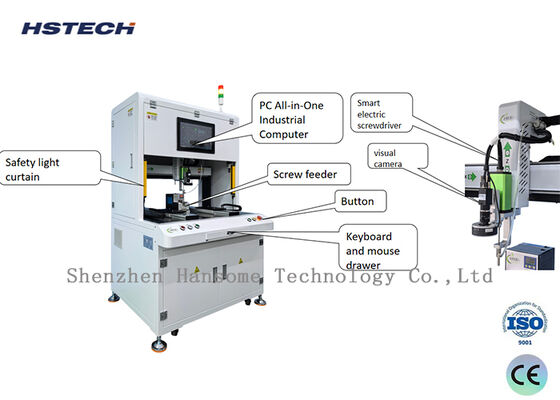

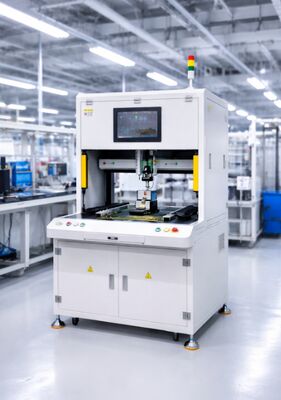

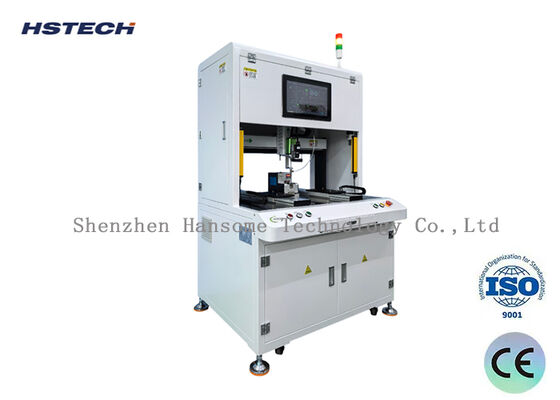

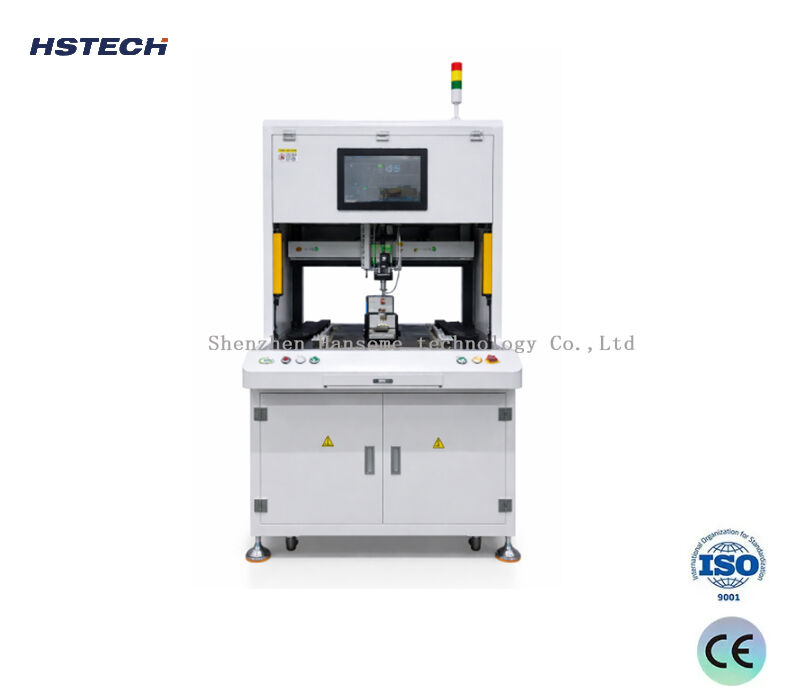

PC Intelligent Grounding Automatic Screw Fastening Equipment

Advanced automated solution designed to optimize screw fastening and grounding processes in SMT production lines. This industrial-grade equipment integrates precision screw-driving technology, PLC control systems, and touch-screen interface for seamless, high-efficiency fastening operations across various industrial applications.

Key Features & Core Advantages

Intelligent Point-to-Point Teaching: Supports CAD coordinate import and manual teaching modes for fast setup and flexible adaptation to changing production needs.
Optional Barcode & QR Code Scanning: Reads product barcodes and QR codes (requires barcode scanner) for traceability and batch management.
MES Connection Ready: Enables production data upload to servers via network connection, supporting Industry 4.0 and smart factory integration.
Full Production Traceability & Data Management: Automatically saves data for each screw fastening operation with built-in query and XLS export functions.
Multi-Level Permission Management: Multi-user, multi-level permission control ensures secure operation and data integrity.
Smart Electric Screwdriver Monitoring & Defect Detection: Features electric screwdriver waveform reading, float detection, local CVS data saving, and intelligent detection for missing screws, floating screws, and stripped threads.
Stable Grounding & Anti-Static Design: Optimized for SMT and PCB assembly environments to protect sensitive electronic components from static damage.

Applications Across Industries

Electronics & PCB Assembly: SMT lines, LED boards, consumer electronics, and communication equipment
Automotive Electronics: Control modules, ECUs, and vehicle electronic components
OEM & Contract Manufacturing: High-volume assembly with strict quality requirements
Home Appliances & Smart Devices: Small appliances, IoT products, and smart home equipment

Technical Specifications

Specification	Value
Axis traveling distance	300250200
Locking product size	240*250
Driven method	Servo Motor
Positioning accuracy	±0.03mm
Screw feeding method	Suction type (or air blowing type)
Locked time	1.5-3S
Power supply voltage	AC220V
Power	1200W
Compressed Air Supply	0.4-0.6MPA
Total weight	200KG
Electric screwdriver quantity	1

Production Benefits

This equipment addresses critical challenges in modern electronics manufacturing where traditional manual screw fastening is no longer sufficient:

Eliminate Human Error: Ensures 100% lock accuracy and repeatability, preventing missing screws, stripped threads, or inconsistent torque.
Reduce Labor Costs: One machine can replace multiple workers, significantly cutting long-term labor expenses and training costs.
Improve Production Efficiency: Automated fastening runs 24/7 at a consistent pace, increasing throughput and shortening lead times.
Meet Quality Standards: Built-in traceability and defect detection help comply with ISO, IATF, and other industry requirements.
Support Flexible Manufacturing: Fast setup and CAD import allow quick adaptation to new products, supporting high-mix, low-volume production.

Market Trends & Industry Alignment

The global automatic screw fastening machine market is growing rapidly, driven by smart factories and automation in electronics manufacturing. This equipment aligns with key industry trends including Industry 4.0 integration, increased precision requirements, adoption in automotive and EV manufacturing, and demand for flexible modular systems.
