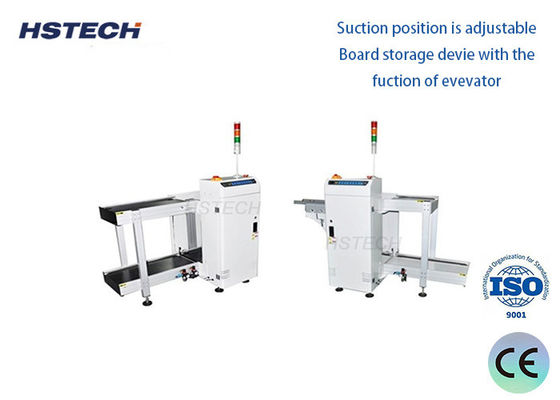

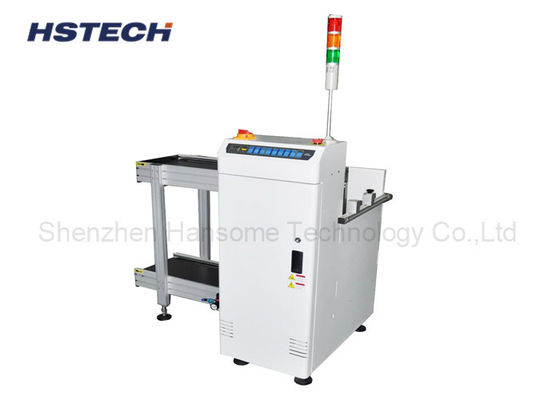

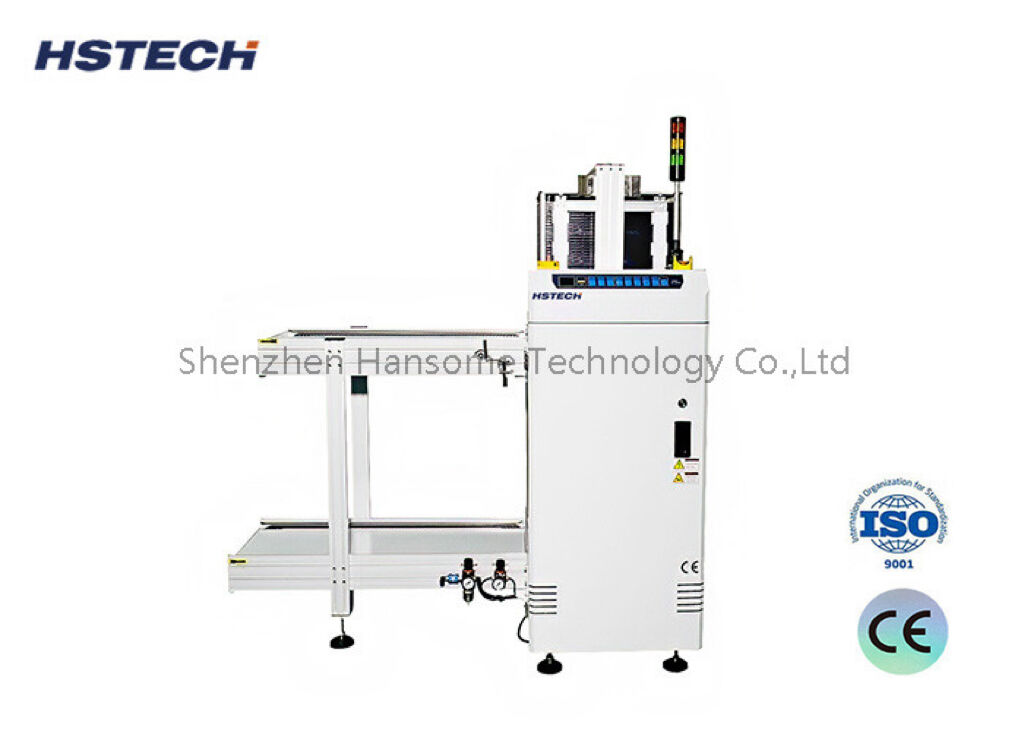

Stainless Steel SMT Line PCB Magazine Loader Automatic PCB Handling Equipment

Our PCB Magazine Loader is a professional PCB Handling Equipment specially developed for the front end of SMT production lines. It is mainly used to automatically feed PCB boards stacked in Magazine Rack one by one to downstream equipment (such as solder paste printers, pick-and-place machines, AOI testing equipment), realizing automatic, continuous and precise PCB loading operation. Whether it is small-batch flexible production or large-scale mass production, our SMT Magazine Loader can adapt to different production needs, effectively reducing labor intensity, avoiding PCB damage caused by manual operation, and improving the overall efficiency of the SMT production line.

As a core component of SMT Handling Equipment, our PCB Magazine Loader adopts industrial-grade design and high-quality components, which can adapt to the harsh working environment of electronic factories, with stable performance and long service life, and is deeply trusted by customers in Europe, America, Southeast Asia and other regions.

1. Tradition LED button control system.
2. Work with 3 magazines racks.
3. Stability stainless steel structure.
4. Smooth and parallel width adjustment.
5. 3 color LED light display.
6. Top and bottom pneumatic clamps to secure magazine rack.
7. No PCB breakage guaranty during loading &unloading.
8. SMEMA compatible.
9. CE listed, suitable for Europe market.

• Global Standard Compliance: Built to meet the rigorous demands of electronics manufacturers in Europe, America, and Southeast Asia. Fully compliant with international SMEMA standards for seamless integration into any existing SMT line.
• Enhanced Production Uptime: Features a robust magazine exchange mechanism that allows for rapid reloading without stopping the machine, ensuring non-stop production and maximizing line efficiency.
• Gentle & Precise Handling: Engineered with a soft-touch lifting and feeding mechanism to prevent board scratching or bending, ensuring the highest quality standards for sensitive and high-precision PCBs.

This PCB Magazine Loader is widely adopted across various industries, including consumer electronics, telecommunications, automotive electronics, industrial control, and LED manufacturing. It is the perfect entry-point automation solution for smart factories aiming to reduce labor dependency and achieve a fully automated PCB assembly line.

Ready to automate your SMT line's front-end process? Contact us now for a competitive quote and a tailored technical proposal. Let us help you streamline your production and achieve higher efficiency!
